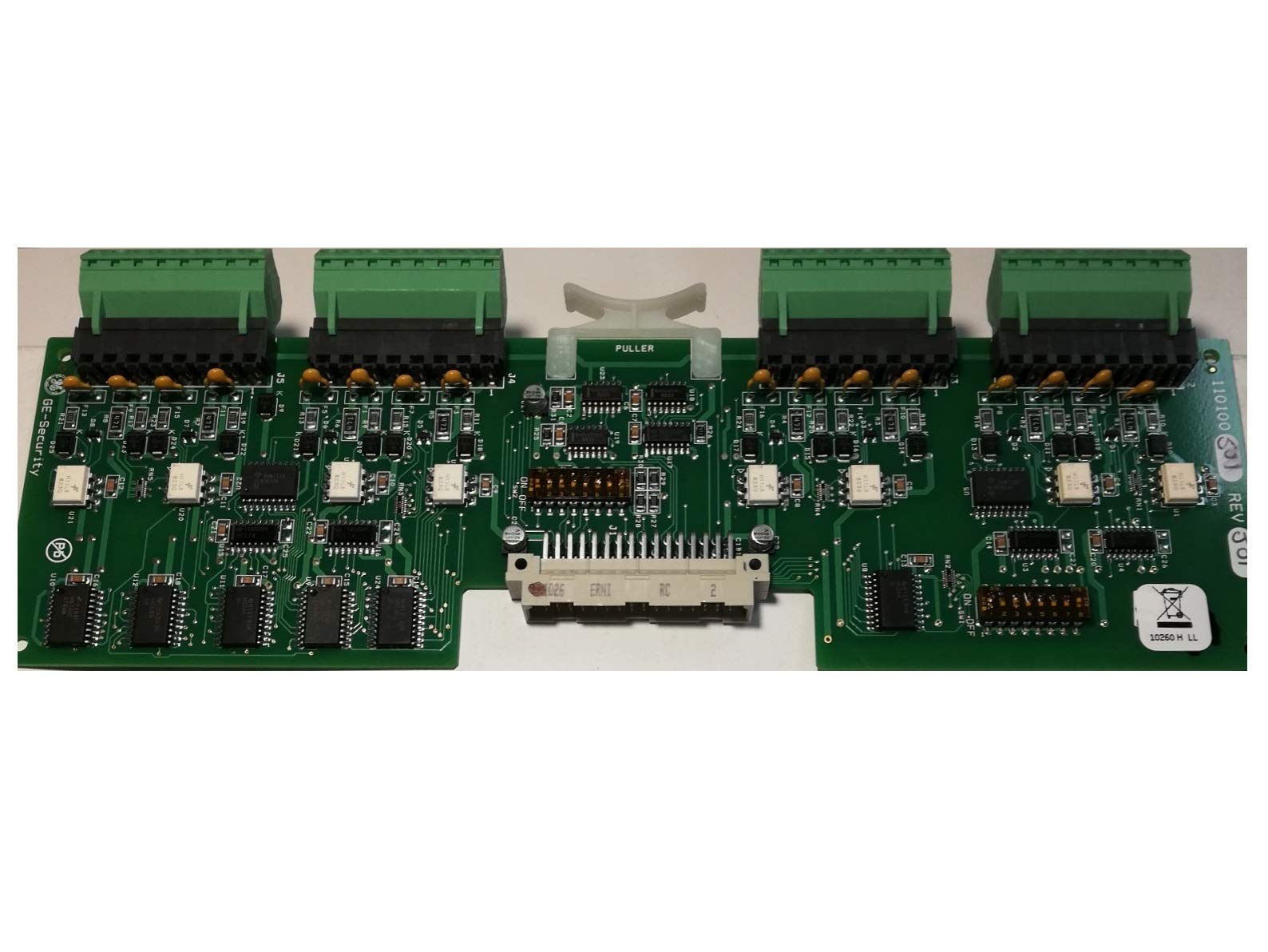

UTC Fire & Security 110100501 8RP 8-Port Reader Interface Card

The Micro/5 8RP is an eight-port reader option board suitable for use with F/2F and supervised F/2F readers. The 8RP is compatible with all GE Micro/5 microcontrollers and access control system software. Micro/5 Configuration Flexibility: You can free up three Micro/5 card slots by configuring one 8RP in place of four 2RPs saving card slots that can be used for 20 DI and 16 DO/DOR options. Micro/5-PX 16 Reader Support: Up to two 8RPs can be configured into a Micro/5-PX or Micro/5-PXN microcontroller, substantially reducing the cost per door for access control. Long Reader to Microcontroller Cable Lenghts: The 8RP has built-in pull-up resistors - making the microcontroller-to-12 VDC reader cable lengths of more than 150 m possible. In specific configurations, select GE readers support cable lengths of up to 1,500 m. Reader Supervision: Reader tamper, cable problem, and reader failure detection are provided by a ''heartbeat'' signal which is passed between the supervised reader and the 8RP. When a problem is detected, an alarm is generated at both the reader and the host system. Product Content: The Micro/5 8RP includes the eight-port reader processor, and screw terminal pluggable field wiring connectors.
