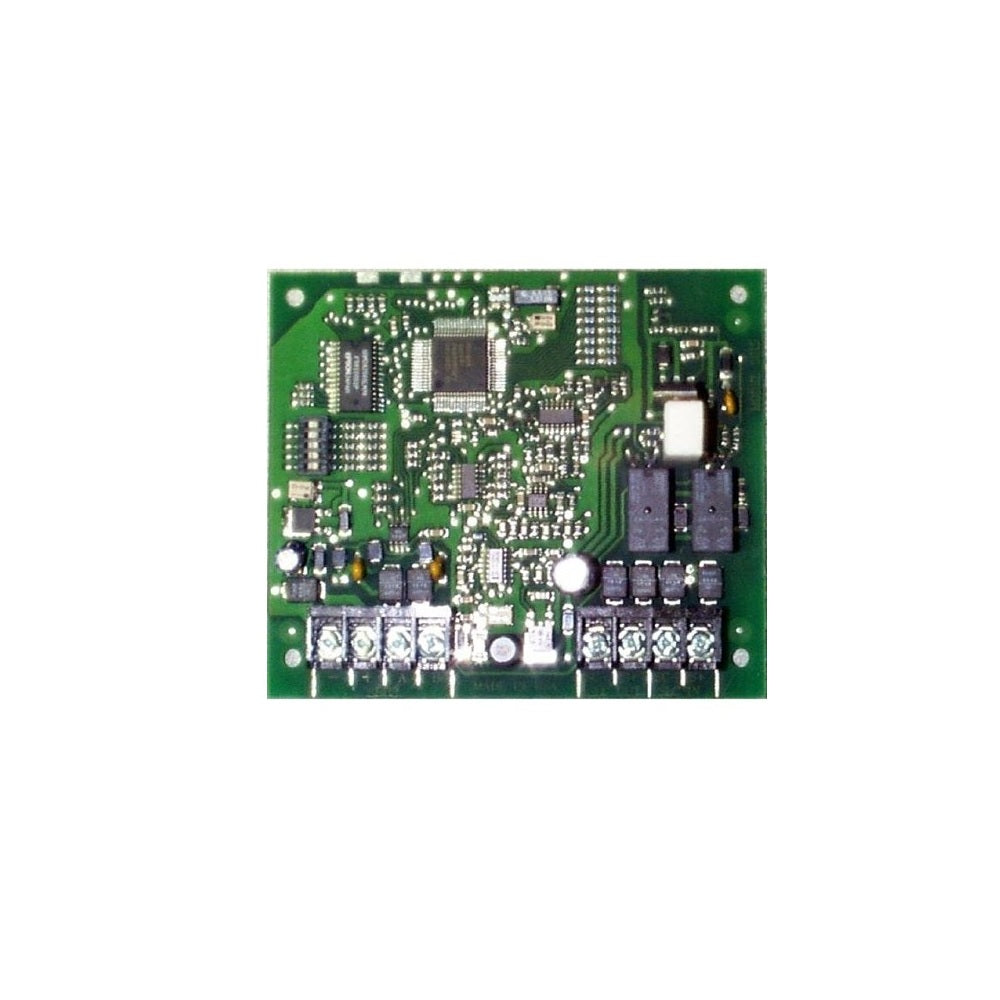

Silent Knight 005815XL Signal Line Circuit Expander for IntelliKnight 5820XL Addressable Fire Control Panel

$559.07
$559.07

Manufacturer : Silent Knight

Sku : 005815XL

Condition : New

4 available

Add to wishlist
The Model 5815XL SLC Expander is a signaling line circuit controller for Silent Knight's IntelliKnight 5820XL addressable fire control panel. It allows you to add 127 addressable devices to the IntelliKnight system. Three 5815XLs can be added to the 5820XL for a maximum of 508 addressable devices per IntelliKnight system. 5815XL signaling circuits have the same functionality as the SLC that is built into the IntelliKnight panel and support the same addressable devices as the main panel. The 5815XL connects to the panel via the RS 485 bus and is housed in the IntelliKnight 5820XL or 5895XL cabinet.
  • •Expanded Device Capacity: The 005815XL SLC Expander allows for the addition of up to 99 SK Modules and 99 SK Detectors, or a total of 127 SD Addressable Devices. This augmentation of the IntelliKnight 5820XL or 5820XL EVS Addressable Fire Alarm Control Panel greatly enhances the system's ability to monitor and respond to potential fire threats.
  • •Integration with Existing Panels: The expander is seamlessly integrated with the IntelliKnight 5820XL Addressable Fire Control Panel. It provides a straightforward means to extend the capabilities of the existing system, enhancing its performance and effectiveness in fire detection and response.
  • •Multiple SLC Expander Compatibility: The system allows for the connection of up to three 5815XL Signal Line Circuit Expanders, offering scalability and flexibility in system expansion. This feature allows for accommodating a larger number of devices and covering a broader area, enhancing the overall fire detection and safety capabilities of the system.
  • •Functional Parity with 5820XL/EVS: The 5815XL Signal Line Circuits (SLCs) maintain the same level of functionality as the 5820XL and 5820XL EVS Addressable Fire Control Panels. This includes the support for Style 6 (Class A) configuration, ensuring a consistent and reliable fire detection and alarm mechanism throughout the expanded system.
  • •Optimized Fire Control Panel: Optimizes the performance of the IntelliKnight 5820XL or 5820XL EVS Fire Control Panel by extending its signal line circuit capabilities, supporting a larger number of addressable devices for enhanced fire detection and control.
