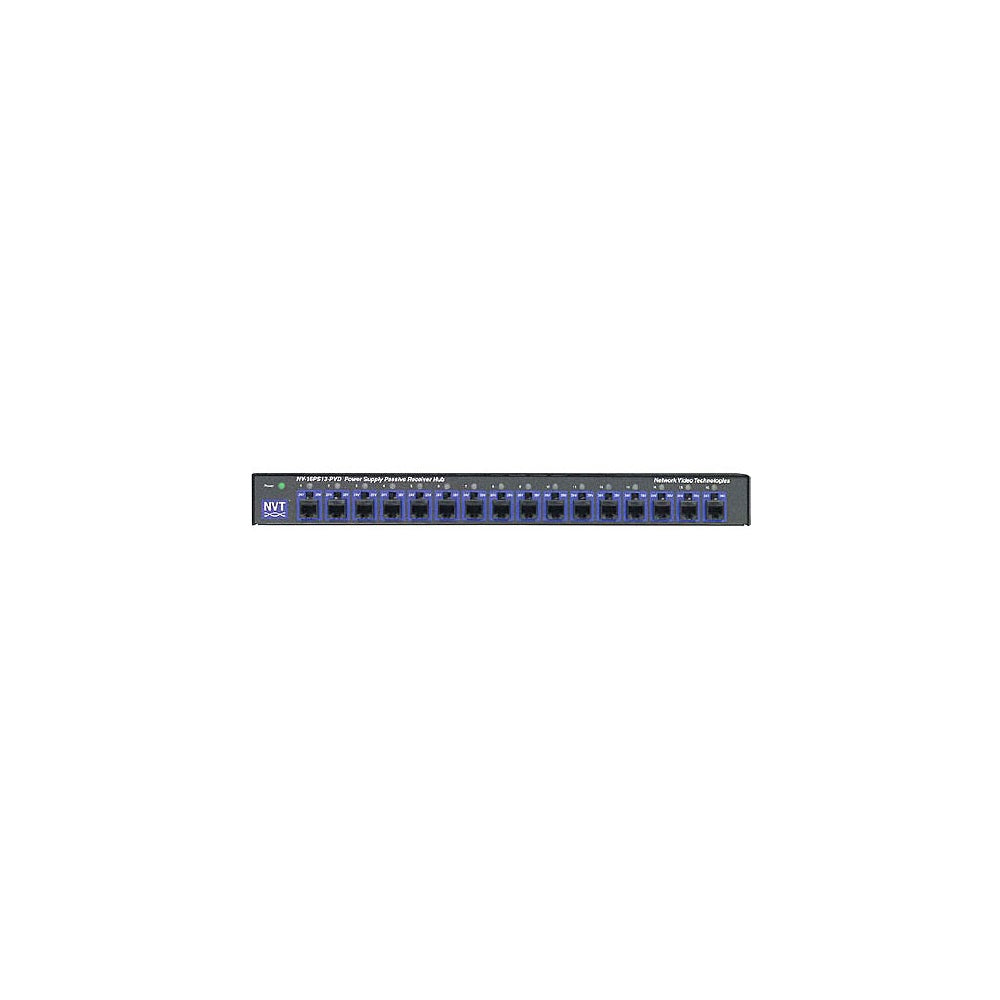

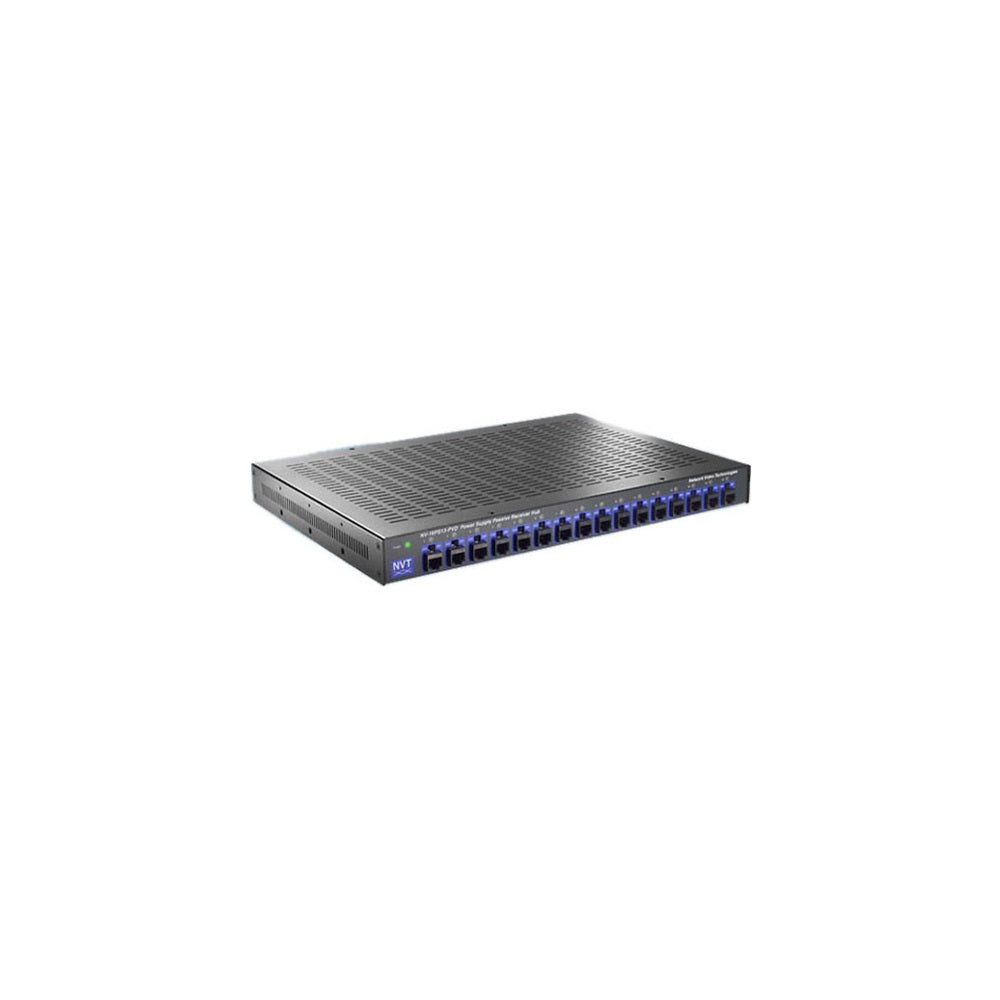

NVT NV-16PS13-PVD 16-Channel Power Supply Passive Video Receiver Hub

$1,800.00
$1,800.00

Manufacturer : NVT

Sku : CR.NV-16PS13-PVD

Condition : New (open box)

2 available

Add to wishlist

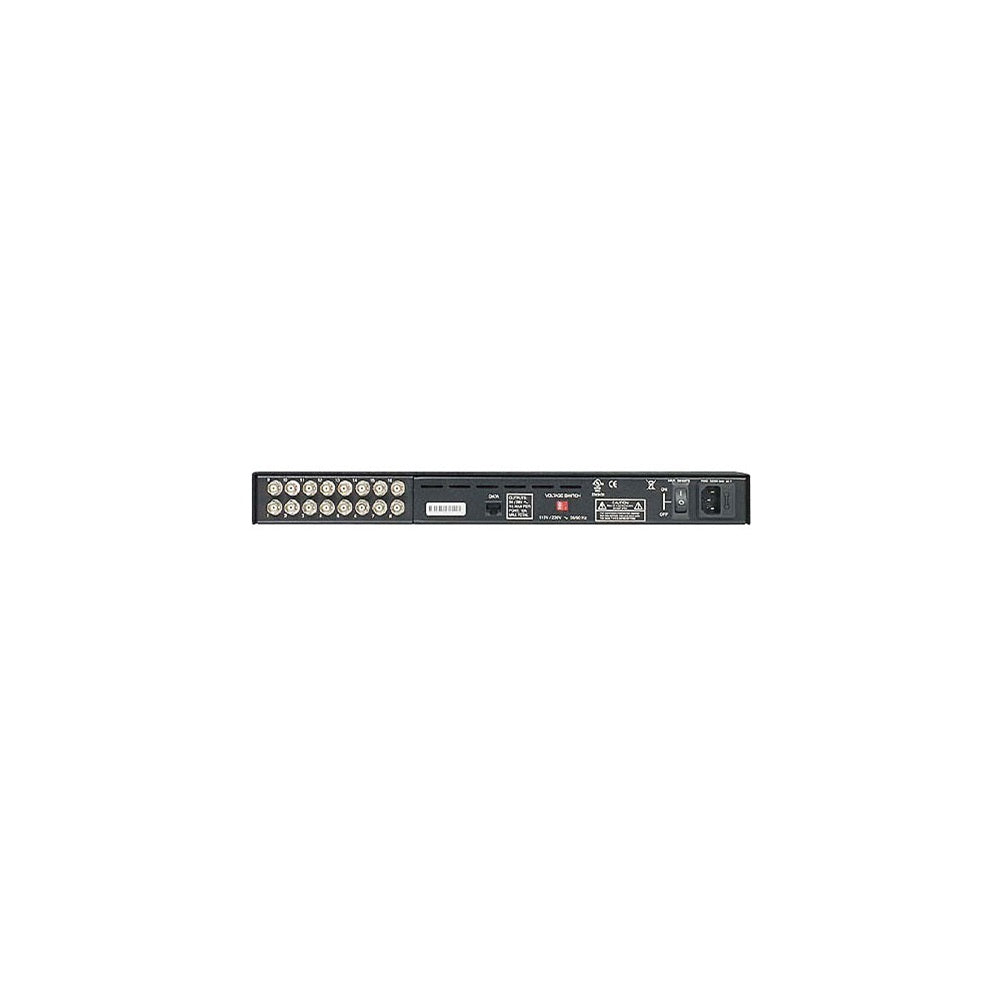

The 16-channel NV-16PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/ TIA 568B structured building wiring. Designed for installation in the IDF/ Telecom Closet or MDF/ Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT's PVD™ transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load/ no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.
  • •Integrated Power and Video Transmission: The NV-16PS13-PVD seamlessly combines the provision of Class 2 SELV camera power with video transmission capabilities. This integration is achieved over a single 4-pair Cat5e cable.
  • •Structured Cabling Compatibility: Adhering to industry standards, the device employs standard telecom/datacom structured cabling pinouts according to EIA/TIA 568B.
  • •Structured Cabling Compatibility: Adhering to industry standards, the device employs standard telecom/datacom structured cabling pinouts according to EIA/TIA 568B.
  • •Fault Protection and Transient Protection: Automatic-reset fault protection mechanisms and transient protection features enhance the durability and reliability of the system, safeguarding against potential issues that may arise during operation.
  • •Wide Frequency Response: The device boasts a broad frequency response range, spanning from DC to 10 MHz. This ensures high-quality video transmission, capturing even the minutest details with clarity.
