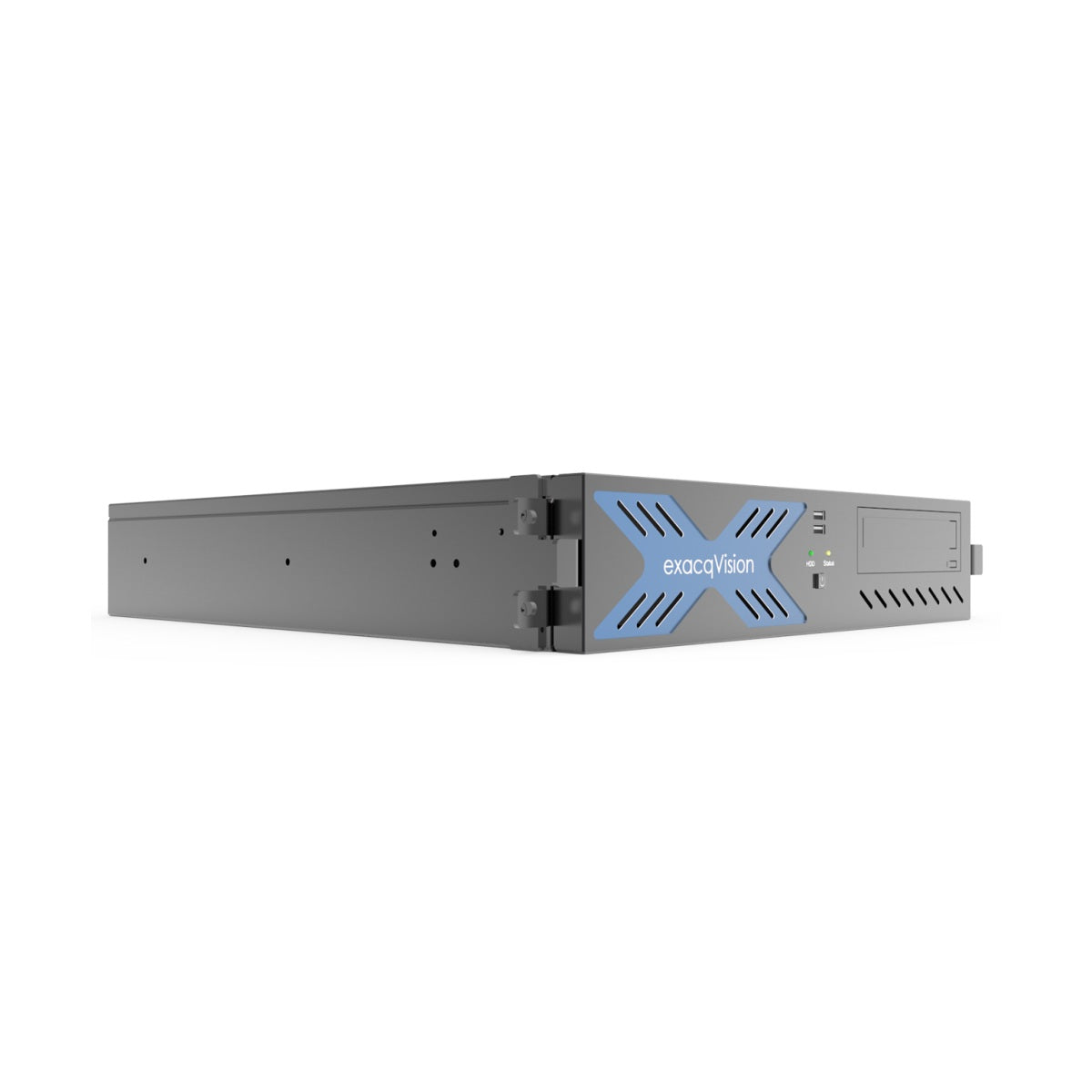

ExacqVision IP04-12T-R2A A-Series Network Video Recorder (NVR)

The ExacqVision IP04‑12T‑R2A is a high‑performance rack‑mountable 2U network video recorder designed for professional surveillance deployments. It supports up to 64 IP camera channels with pre‑installed exacqVision software (Professional or Enterprise), making it suitable for both small‑to‑mid size operations and more demanding environments. The unit comes with a large 12 TB hard drive for video storage, and supports expansion to higher capacities. Connectivity includes dual Gigabit Ethernet ports, multiple video outputs such as HDMI, DVI, DisplayPort for local monitoring, and several USB ports for peripheral devices. The system can be configured with either Windows or Ubuntu Linux operating systems, offers hot‑swappable or front‑accessible storage bays, and optional RAID levels (e.g. RAID 5) for data redundancy. It is built for reliable continuous operation with video recording, playback, and client streams. With power consumption around 110‑160 W (depending on load), this model also operates over typical commercial temperature ranges (about 40°F to 95°F). The chassis measures about 16.8 in wide, 21.5 in deep, height 3.5 in (2U height), and the unit weighs roughly 27.1 lb. It includes keyboard and mouse in the package and carries a 3‑year hardware warranty.
