Edwards EST G1RF-VM Multi-Candela Strobe
- Regular price
- $46.76
- Regular price
-
- Sale price
- $46.76
- Unit price
- per
Couldn't load pickup availability
Manufacturer : Edwards EST
Sku : G1RF-VM
Condition : New
2 available

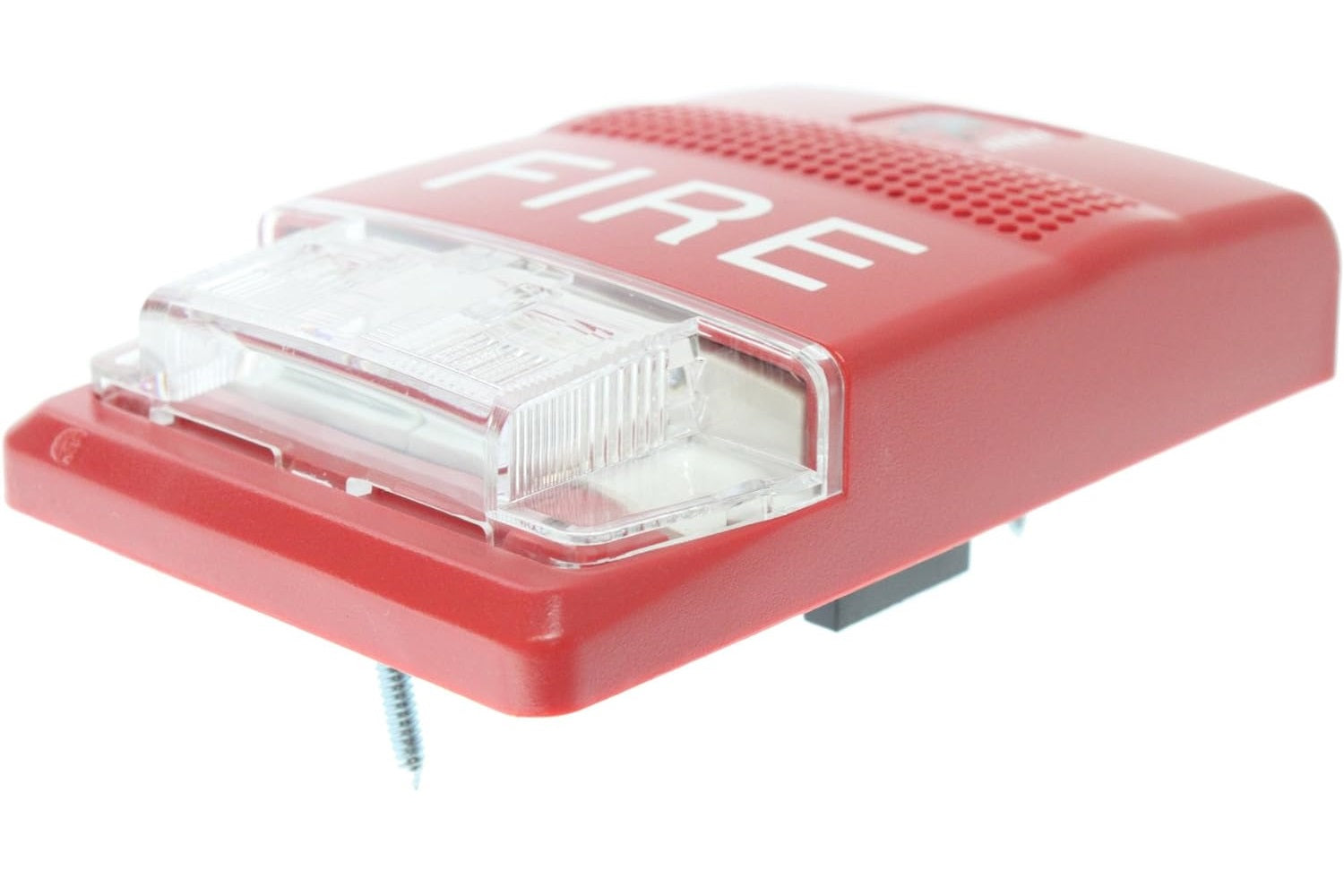

The Edwards EST G1RF-VM Genesis horn strobe is a top-tier fire alarm notification appliance designed for indoor walls. This versatile device offers field-configurable options, allowing you to select the desired dB output, horn signal, or strobe signal output to cater to your specific needs. The strobe includes a convenient field-configurable switch for selecting the desired candela output, which remains locked in place and visible after final installation.
Compliant with UL 1971 Signaling Devices for the Hearing Impaired and the Canadian standard CAN/ULC-S526, the Genesis G1RF-VM features an enhanced synchronization circuit for reliable performance. For synchronized operation, a separate synchronization control module installation is required. Installation should be carried out in accordance with NFPA codes, the National Building Code of Canada, the Canadian Electrical Code, Part 1, Section 32, and local authorities' regulations.
- •Operating Voltage: 24 VDC or 24 VFWR nominal
- •Light output: Selectable at 15, 30, 75, and 110 cd
- •Light output: Selectable at 15, 30, 75, and 110 cd
- •Compatible wire size: 12 to 18 AWG (0.75 to 2.50 mm²)
- •Temperature range: 32 to 120°F (0 to 49°C), Relative humidity: 0 to 93% non-condensing
