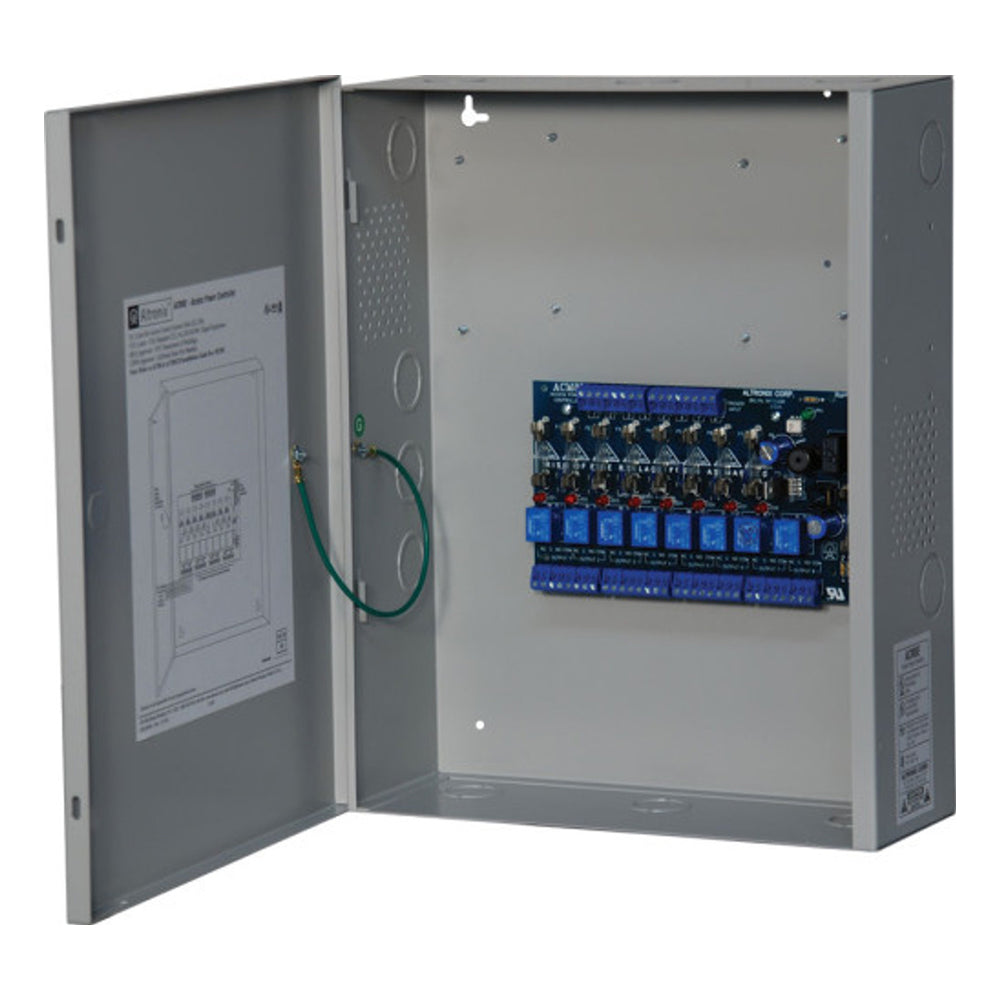

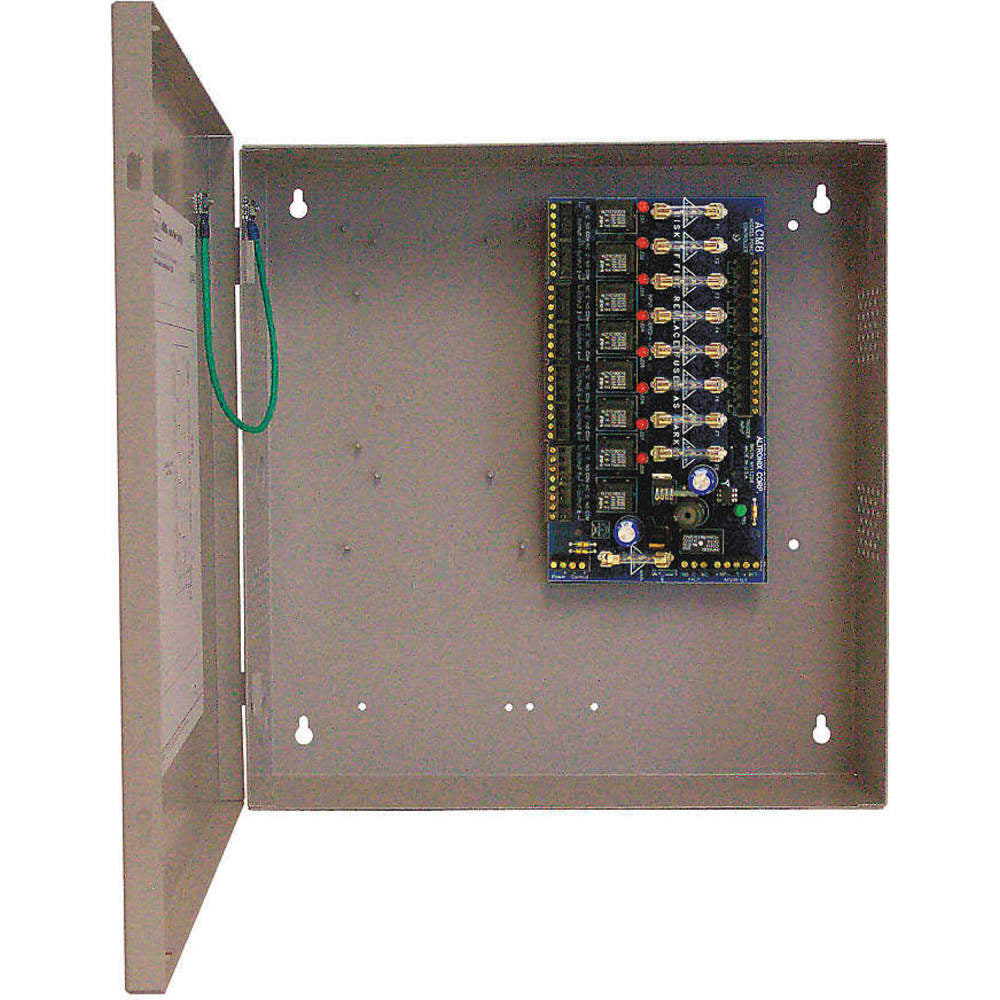

Altronix ACM8E Access Power Controller, 8 Fused Relay Outputs BC400 Enclosure

$46.79
$46.79

Manufacturer : Altronix

Sku : CR.ACM8E

Condition : New (open box)

1 available

Add to wishlist
The Altronix ACM8E is a versatile power conversion solution, transforming a single 12 to 24-volt AC or DC input into eight independently controlled fuse-protected outputs. Engineered to meet diverse access control needs, these outputs can be converted to dry form "C" contacts, activated by triggers from various sources like card readers, keypads, or PIR sensors. The unit efficiently powers access control hardware, including mag locks, electric strikes, and magnetic door holders. Offering flexibility, it operates in Fail-Safe and/or Fail-Secure modes. The ACM8E accommodates a single power source for both board operation and locking devices or two independent sources.
  • •Multi-Output Versatility: Converts one input into eight independently controlled and fuse-protected outputs for diverse applications.
  • •Flexible Trigger Options: Outputs activated by open collector sink or normally open (NO) dry trigger input, ensuring compatibility with various access control devices.
  • •Flexible Trigger Options: Outputs activated by open collector sink or normally open (NO) dry trigger input, ensuring compatibility with various access control devices.
  • •Dual Power Source Support: Accommodates either a single common power source or two independent sources for board operation and lock/accessory power.
  • •Fire Alarm Interface: FACP output relay with form "C" contact allows Emergency Egress, Alarm Monitoring, and activation of auxiliary devices.
